Description
The MGE-SL1 LED Shadowless Ceiling Light delivers exceptional illumination tailored for a wide range of surgical applications. Engineered for superior shadowless lighting, it features a multi-bulb LED system with an extended lifespan compared to traditional lighting solutions. Its innovative design includes options for round or petal-shaped lamp heads, seamlessly integrated into a universal spring suspension system for precise positioning and vertical or cyclic movement, adapting to varying surgical requirements.
Key Features:
- High-Performance Surgical Lighting: Provides consistent and powerful illumination, enhancing surgical precision.
- Advanced Shadowless Effect: The scientifically designed arc focus eliminates shadows caused by the surgeon’s head and shoulders, ensuring optimal lighting depth and surface illumination.
- LED Cold Light Source: Eliminates heat emission, protecting both the surgeon and the patient during procedures.
- Adjustable Illumination and Color Temperature: Germany-imported Osram LED bulbs offer natural light at 4300K, ensuring true tissue color reproduction and constant temperature under all conditions.
- Manual Focus System: Achieves targeted lighting with effortless adjustments by rotating the handle clockwise or counterclockwise.

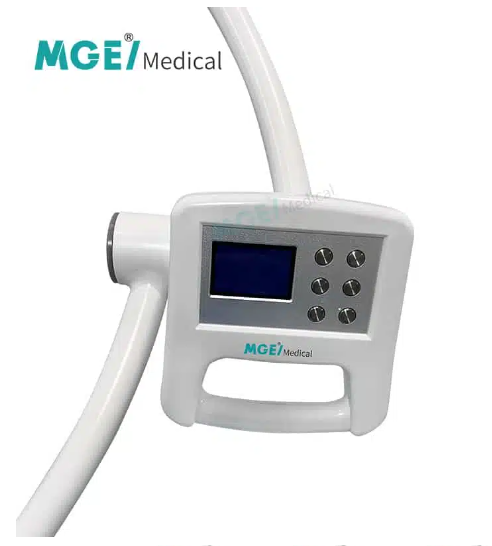

- Multifunctional Disinfection Handle: Features non-contact sensor technology for efficient adjustments of light intensity and spot size, directly from the handle.
- Microcomputer Control Panel: Allows precise control of power, brightness, color temperature, and lighting modes via a digital display.
- Robust Design: An ultra-thin aluminum lamp head is paired with a mold-die cast revolving arm for smooth operation and durability.
- Optional Camera System: Built-in Full HD camera integrates seamlessly into the light head, supporting recording and real-time monitoring for advanced surgical needs.
- Support for Laparoscopic Surgery: Versatile functionality makes it ideal for specialized procedures requiring focused and shadow-free lighting.
Technical Parameters
| Item | Parameters |
|---|---|
| Origin | China |
| Model | MGE-SL1 |
| Product Name | LED Shadowless Ceiling Light |
| Diameter of Lighthead (mm) | 700/500 |
| Illumination at 1m (Lux) | 180,000/160,000 |
| Spot Diameter (mm) | 100-300 |
| Illumination Depth (mm) | ≥1200 |
| Brightness Control Range | 0-100% stepless adjustment |
| Color Rendering Index (CRI) | ≥95 |
| Color Temperature (Kelvin) | 3700-6700 |
| Temperature Rise (Surgeon Head) (℃) | ≤1 |
| Temperature Rise (Surgical Field) (℃) | ≤1 |
| Total Irradiance Ee (W/m²) | ≤600+500 |
| Radiant Power Ee/Ec (mW/m²lux) | ≤4 |
| Effective Focusing Depth (cm) | 60-130 |
| Lighting Spot Size (cm) | 16-28 |
| Working Radius (mm) | 600-1800 |
| Voltage (V) | AC110-240V 50/60Hz |
| Input Power (W) | 400VA |
| Bulb Type | LED |
| Bulb Brand | OSRAM |
| Average Service Life (H) | ≥80000 |
| Power of Single Lamp Bead | 1W/3V |
| Optimum Installation Height (mm) | 2800-3000 |
