Description

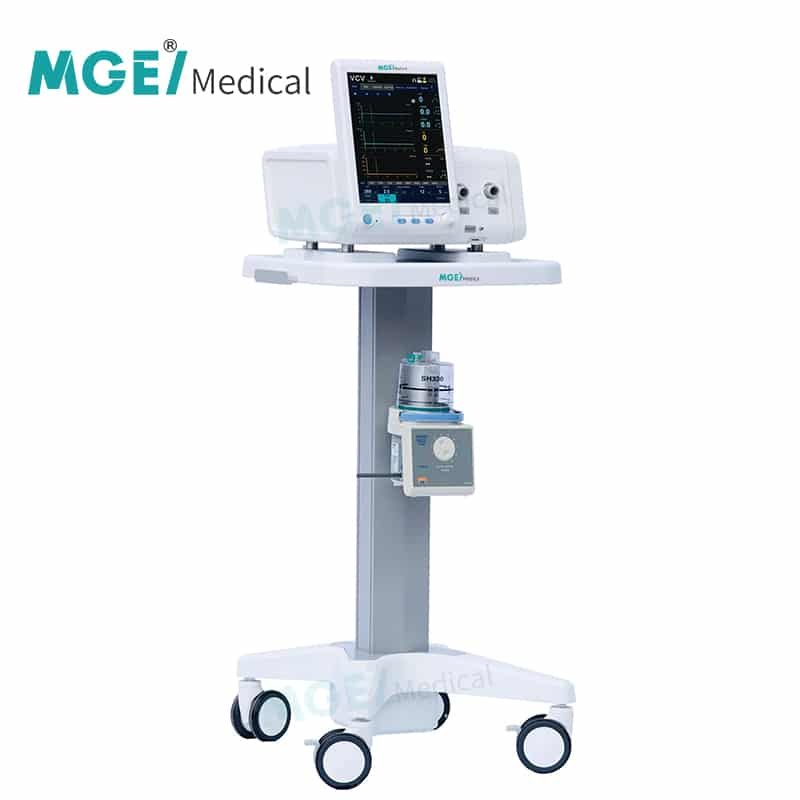

The MGE-ERVW8 is a next-generation turbine-driven ICU ventilator designed for acute respiratory support in adults, pediatrics, and neonates. With exceptional ventilation performance, intelligent controls, and comprehensive monitoring capabilities, it meets the demands of diverse clinical environments.
Key Features:
- Advanced Turbine Technology: Integrated turbine delivers continuous high flow up to 220L/min, ensuring rapid compensation for patient needs.
- Versatile Ventilation Modes: Supports both volume- and pressure-based ventilation, including pressure support, spontaneous breathing, and non-invasive ventilation, adapting to various clinical situations and patient categories.

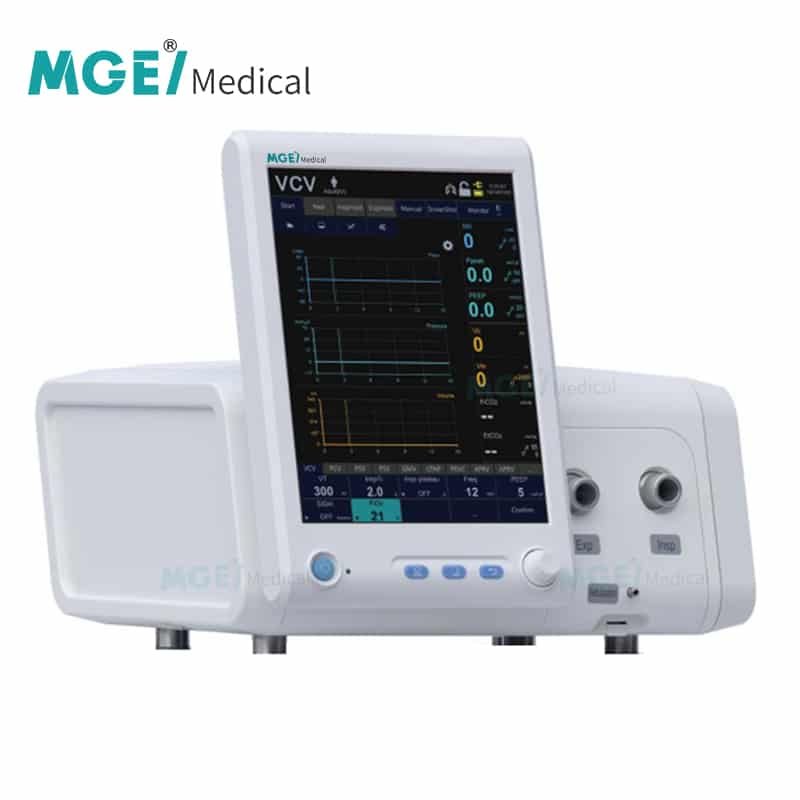

- 12.1-Inch Touchscreen: User-friendly interface with intuitive layout and responsive one-touch operation for seamless adjustments.
- Comprehensive Monitoring: Displays three waveform types simultaneously, records trends and events, and provides long-term monitoring of key ventilation parameters.
- High Synchrony: Quick response to patient triggers enhances patient-ventilator synchrony, improving respiratory outcomes.
- Alarm System: Features three levels of audio and visual alarms with adjustable volume for enhanced safety.
- Durable Design: Compact and tightly structured for reliable performance in demanding ICU settings.
Technique Specifications
| Category | Specifications |
|---|---|
| Dimensions (L × W × H) | 40 × 42 × 36 cm (15.7 × 16.5 × 14.2 in) |
| Weight | Approximately 13 kg (28.6 lbs) – Main Unit Approximately 26 kg (57.3 lbs) – With Trolley |
| Display | Size: 12.1 inch TFT Touch Screen Resolution: 1280 × 800 pixels Brightness: Adjustable |

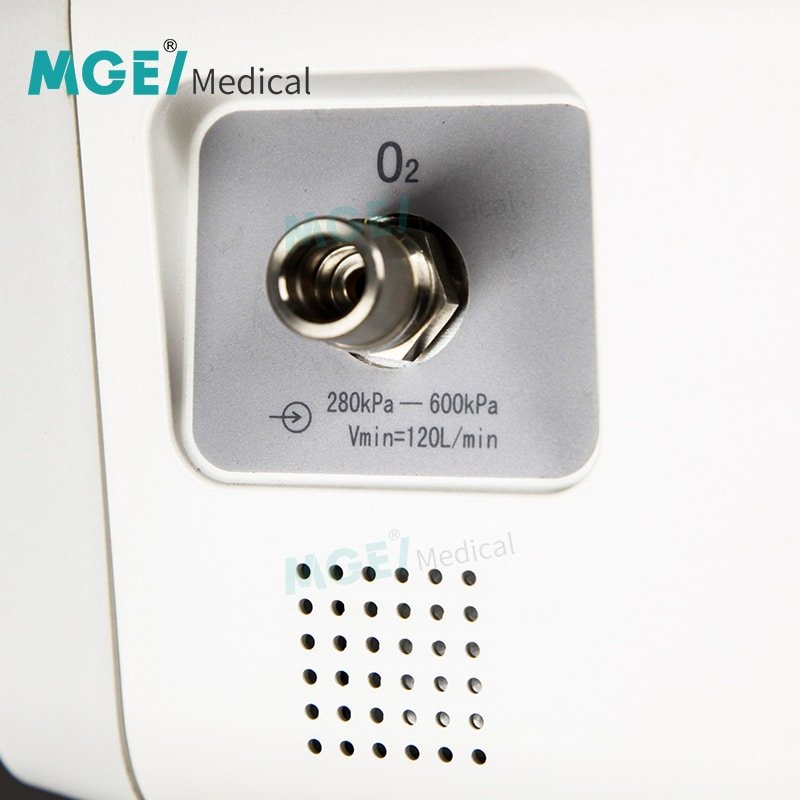

| Gas Supply | Medical-grade Oxygen Input Pressure: 200-600 kPa (2.8-6.0 bar) |
| Power & Battery | Input Voltage: 100-240 V Frequency: 50/60 Hz Input Current: 2.5 A Max Battery Type: Built-in Lithium-ion Battery (12 V) |
| Ventilation Specification | Ventilation Type: IV & NIV Patient Type: Adult, Pediatric, Neonatal Modes: VCV, AC-V, SIMV-V, PA-VC, PCV, AC-P, SIMV-P, PSV, CPAP, BIPAP, APNEA, APRV (Optional) |
| Controlled Parameters | VT: 2-2000 mL MV: 250-15000 mL/min Min Tinsp/Texp: 150-1000 ms Respiratory Rate: 2-200 bpm PEEP: 0-40 cmH2O Max Inspiration Pressure: 90 cmH2O |
| Oxygen Therapy | Oxygen Concentration: 21%-100% Flow: 3-75 L/min |
| Environmental Operating Conditions | Temperature (Module): -20 to +60 °C Temperature (Gas Inlet): -20 to +50 °C Relative Humidity: 5%-95% RH Ambient Air Pressure: 500-1100 mbar Noise: <45 dB |
| Brand Name | MEDIGEINT, MEDIGE |
|---|---|
| Certificate | ISO-9001/13485/14001/45001, CE, FDA |
| Factory type | Over 20 years medical equipment manufacturer |
| Packing | Carton or wooden case |
| Port | ShangHai, NingBo, TianJin, QingDao, GuangZhou |
| Sample/Service Manual/OEM | Available |
| Warranty | 5 Years |
