Description

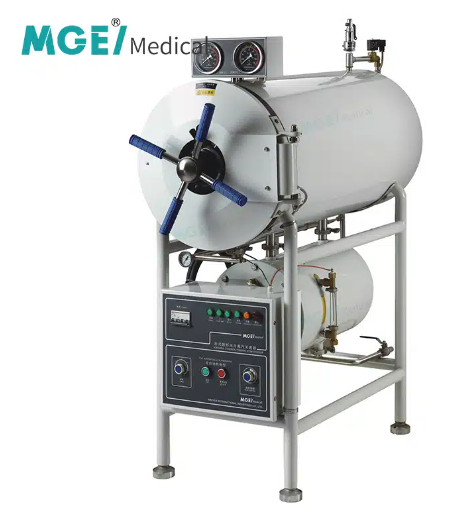

The MGE-SADA400 Horizontal Steam Sterilizer is designed for automatic and safe sterilization processes, featuring advanced safety mechanisms and user-friendly controls. It is ideal for sterilizing medical equipment, with additional drying functionality for dressings.
Key Features:
- Automatic Sterilization Control: The sterilization process is fully automated, ensuring ease of operation.
- Drying Function: Includes a drying feature, making it suitable for drying medical dressings.
- Over-Temperature & Over-Pressure Protection: Equipped with automatic protection systems for enhanced safety.
- Safe Door Mechanism: The door remains locked until the chamber pressure is safely reduced below 0.027 MPa. The sterilizer will not start unless the door is properly closed.
- Automatic Pressure Release: The safety valve automatically opens when pressure exceeds 0.24 MPa, releasing excess steam into the water tank.
- Water and Power Safety Features: The system will automatically shut off and trigger an alarm when water levels are low, protecting the device from damage.
- Stainless Steel Chamber: The sterilization chamber is made of durable stainless steel for long-term reliability.
Product Parameter
Specification | Details |
---|---|
Model | MGE-SADG400 |
Place of Origin | China |
Overall Dimensions (L×W×H) | 1430×880×1830mm (56.3×34.6×72 in) |
Chamber Size (Ø×L) | Ø700×1100mm (27.6×43.3 in) |
Sterilizing Chamber Volume | 400L (105.7 gal) |
Working Pressure | 0.22MPa |
Working Temperature | 134°C |
Temperature Adjustment | 105°C – 134°C |
Sterilization Time | 0-60 min |
Drying Time | 0-60 min |
Heat Average | ≤±2°C |
Power | 18KW/380V 50Hz |
Transport Dimensions (L×W×H) | 1600×1050×2100mm (63×41.3×82.7 in) |
