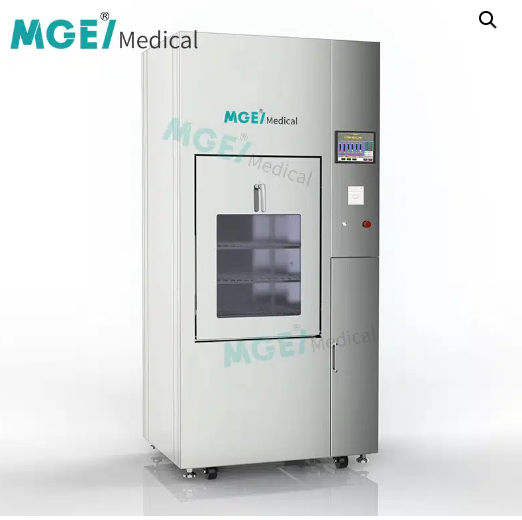

Automated Washer Disinfector 350L MGE-ASQ1

৳ 0.00

  • Outer Dimensions: 950*825*2060mm
  • Cleaning Chamber Size: 627*595*980mm with a total volume of 350L.

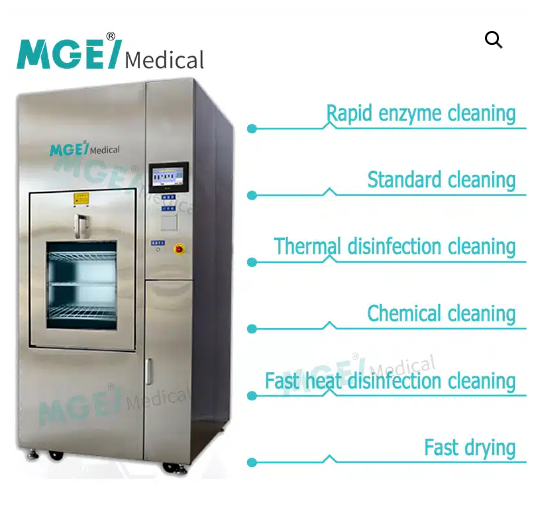

  • Versatile Cleaning Modes: Offers enzyme, standard, thermal disinfection, chemical, and quick thermal disinfection with drying options.
  • User-Friendly Operation: Features a PLC control system with an intuitive touch screen interface.
  • Data Recording: Integrated thermal printer for storing disinfection data, including time and temperature.
  • Efficient Cleaning: Enzyme cleaning completes in just 35 minutes.
  • Hygienic Design: Double door system ensures separation of clean and non-clean areas.
  • Durable Components: Equipped with a long-lasting circulating pump.
  • High Capacity: Can clean up to 8 standard baskets simultaneously.
  • Safety Features: Self-diagnosis system for automatic fault detection and safe operation.

Available on backorder

Description

The MGE-ASQ1 Automated Washer Disinfector is an essential device for hospital central sterile supply departments (CSSD), responsible for the cleaning and disinfection of reusable medical instruments and items. Its effectiveness plays a crucial role in hospital infection control. This high-performance washer disinfector is designed for surgical instruments, glassware, anesthesia tools, and plastic products, offering efficient cleaning, disinfection, and drying processes.

Key Features:

  • Efficient Cleaning & Disinfection: Designed to handle a variety of medical instruments, including surgical tools and plastic items, ensuring high-quality sterilization.
  • Time-Saving & Labor-Efficient: Automates the process, saving time and reducing manual labor while ensuring thorough cleaning and sterilization.
  • User-Friendly Operation: Simple to operate, enhancing ease of use while maintaining stringent safety standards.
  • Improved Sterilization Outcomes: Ensures superior cleaning results, contributing to better infection control and sterilization practices in hospitals.

Details Images

surgical washer asq1
bipap machine asq1
scican washer disinfector asq1
cssd washer asq1
medical supplies asq1

Product Paramenter

Specification Details
Model MGE-ASQ1
Place of Origin China
Language English/Spanish
Inner Cabin Material 304 Stainless Steel
Drying Temperature 90°C (194°F) for 20 minutes
Disinfection Temperature 93°C (199.4°F)
Number of Cleaning Racks 4
Number of Baskets 12
Control System Siemens PLC
Equipment Category Fixed
Outer Box Size (L*W*H) 950*825*2060mm (37.4*32.5*81.1 in)
Cleaning Cabin Size (L*W*H) 627*595*980mm (24.7*23.4*38.6 in)
Total Volume 350L (12.4 cu ft)
Power Supply 3N~220V, 50Hz
Power 30kVA
Ambient Temperature 5°C~40°C (41°F~104°F)
Relative Humidity ≤80%
Atmospheric Pressure Range 70kPa~106kPa
Water Supply Pressure 0.2MPa~0.5MPa
Inlet Water Temperature 5°C~40°C (41°F~104°F)
Working Cabin Material 304 Stainless Steel
Load Frame Trolley Material 304 Stainless Steel
Working Noise ≤75dB(A)
Appropriate Types Radioactivity, Pollution, Large Quantities, High Cleanliness
Operating Mode Custom Mode: Each process request time and working temperature parameters can be customized.
Standard Mode: 6 preset modes
Functional Accessories Thermal Printer, 7″ LCD Touch Screen, USB Data Port, 4 Movable Casters, 4 Fixed Tripods
